Description

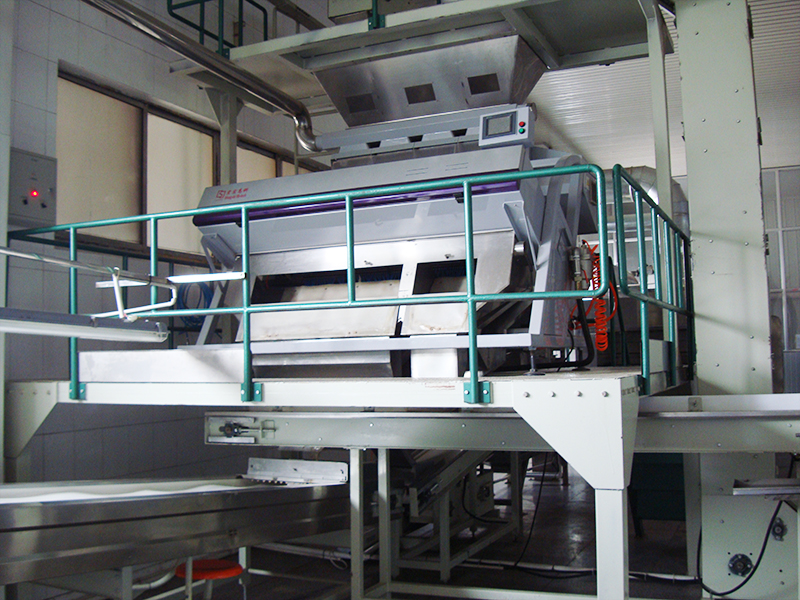

Peanut color sorter is used in peanut processing line, act as the sorting function due to optical sorting function can increase efficiency with large extent.
Application
Peanuts, sunflower seeds, pumpkin seeds, cashew nuts,hazelnuts, walnuts, pistachio, almond, Brazil nut, Tiger nut, Apricot kernel, Macadamia nut
Features
The feature of linear array CCD tri-color sorting technology and colorful high definition distinguish make sorting of high speed and accuracy
Visible full-color spectral distribution, spectral regions are free to adjust
The feature of high-resolution imaging technology and peanuts photo collection technology are capable of defining and sorting all materials and colors
Each part can synchronize multi-task and multi-mode color selection, as well as positive selection, reverse selection and synchronously distinguish several colors
Leading technology to LED light resource application has advantages of efficiency lightness, long life time, short response time and stable performance
Powerful software platform is easy to learn and convenient to operate
Strong picture processing module can be capable of recognizing the difference of shape, breakage, camber, size and length, etc.
It can select hulled, broken, fermented peanuts, as well as discolored, soiled one
Parameter
| Model |
NP3 |
NP4 |
NP5 |
| Capacity(T/H) |
1.5-3.0 |
2.0-4.0 |
3.0-5.0 |
| Color sorter precision(%) |
> 99.99 |
> 99.99 |
> 99.99 |
| Optimal carryover ratio of secondary sorting |
> 8:1 |
> 8:1 |
> 8:1 |
| Voltage of power supply |
220V50HZ |
220V50HZ |
220V50HZ |
| Power (KW) |
0.6-1.8 |
1.0-2.7 |
1.2-3.0 |
| Pressure of pneumatic supply(Mpa) |
≥ 0.6 |
≥ 0.6 |
≥ 0.6 |
| Consumption of pneumatic supply(L/min) |
600-1200 |
1000-1800 |
1200-2500 |
